V SFX Platinum , Fully Modular 1100W A/EU Cable
https://uat.gadtech.in.th/shop/gad-7618-v-sfx-platinum-fully-modular-1100w-a-eu-cable-1419
https://uat.gadtech.in.th/web/image/product.template/1419/image_1920?unique=3081d3b
● MPZ-B001-SFAP-B● ATX3.0, SFX 12V Ver. 3.42● Active PFC
เงื่อนไขและข้อกำหนด
รับประกันคืนเงินภายใน 30 วัน
การจัดส่งสินค้า: 2-3 วันทำการ
V SFX Platinum , Fully Modular 1100W A/EU Cable
| Product Name | V1100 SFX Platinum |
| Item Code | MPZ-B001-SFAP-B |
| ATX Version | SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 100~240V |
| Input Current | 14~6.5A |
| Input Frequency | 50~60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | ≧92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0~50°C |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≧16ms |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, CB, UKCA |

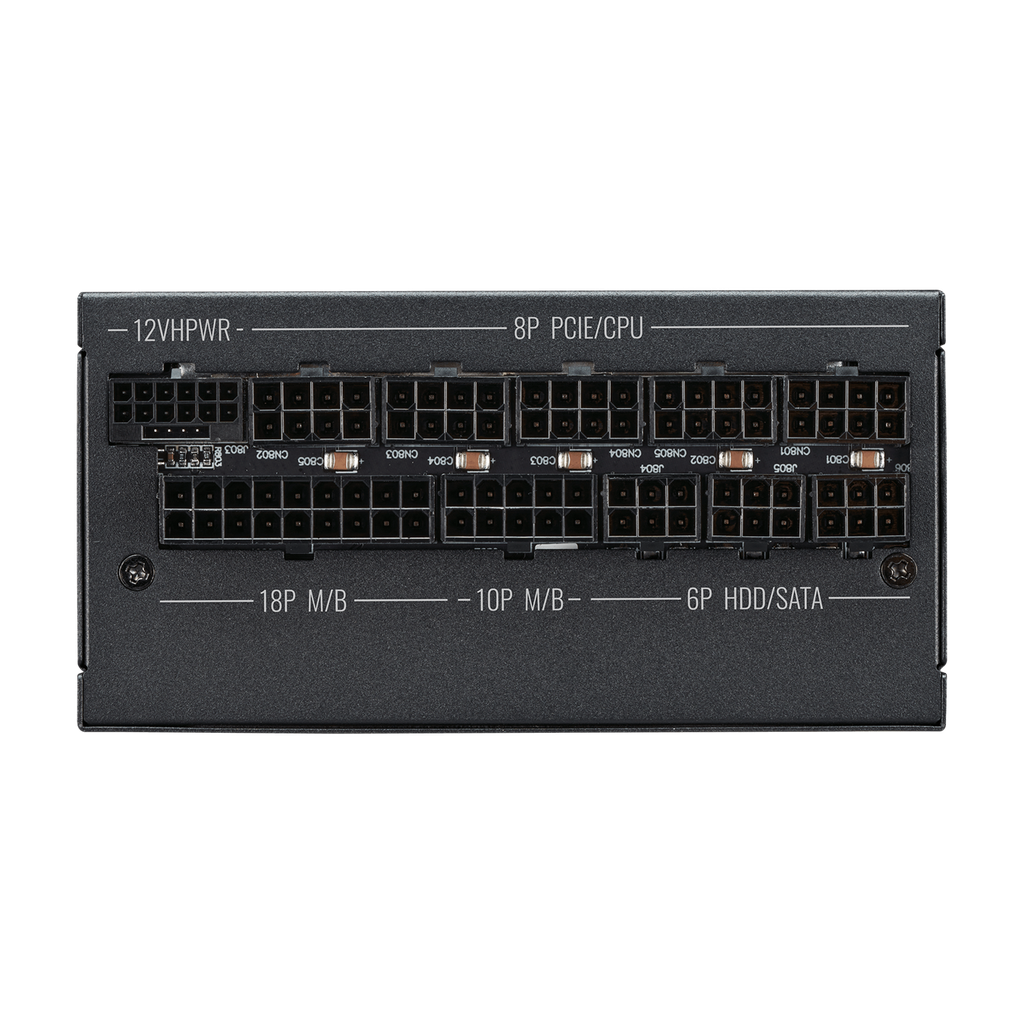

| Connectors | | ATX 24 Pin | | EPS 4+4 Pin | | EPS 8 Pin | | SATA | | Peripheral 4 Pin | | PCI-e 6+2 Pin | | PCI-e Gen 5.0 |
|
| | x1 = 1x (300mm) | | X1 = 1x (450mm) | | X1 = 1x (450mm) | | x8 = 2x (100 + 150 + 150 + 150mm) | | x4 = 1x (100 + 120 + 120 + 120mm) | | x6 = 3x (400 + 120mm) | | x1 = 1x (400mm) |
|
