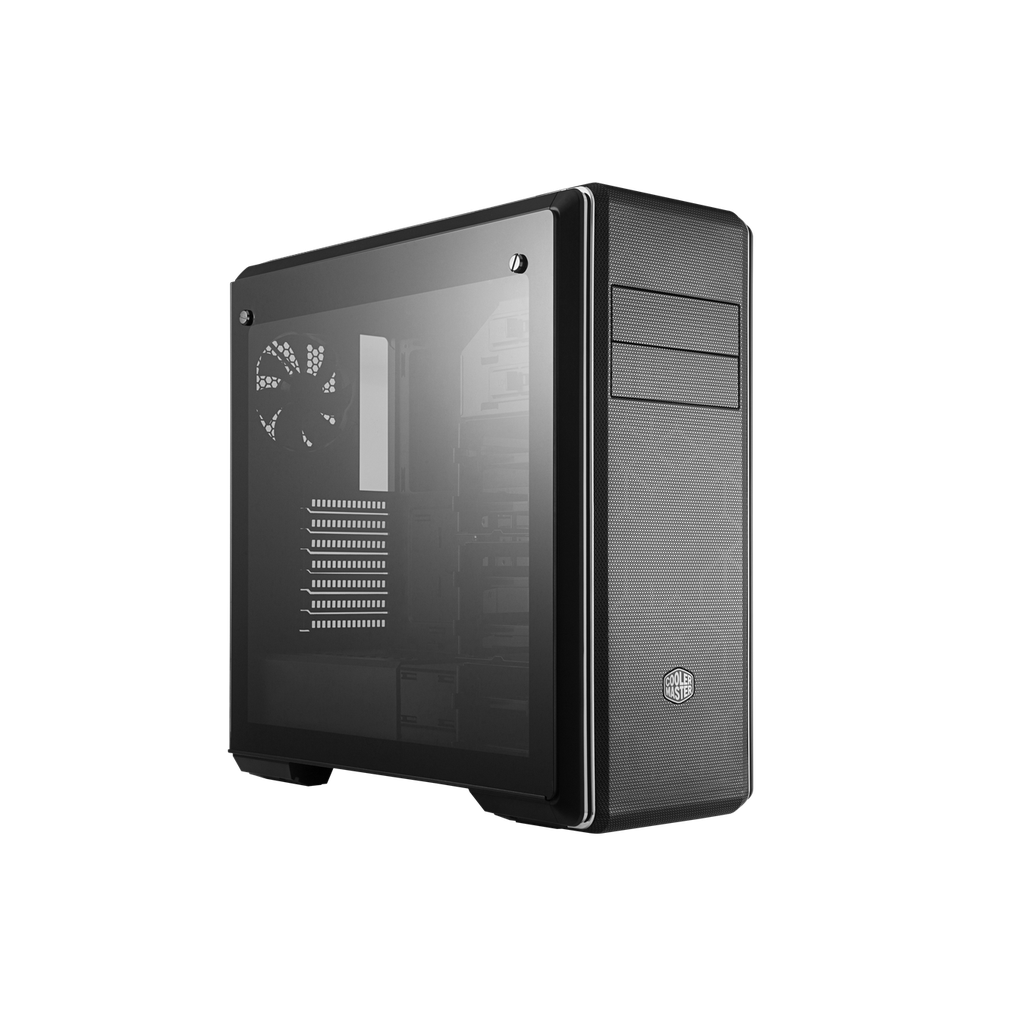

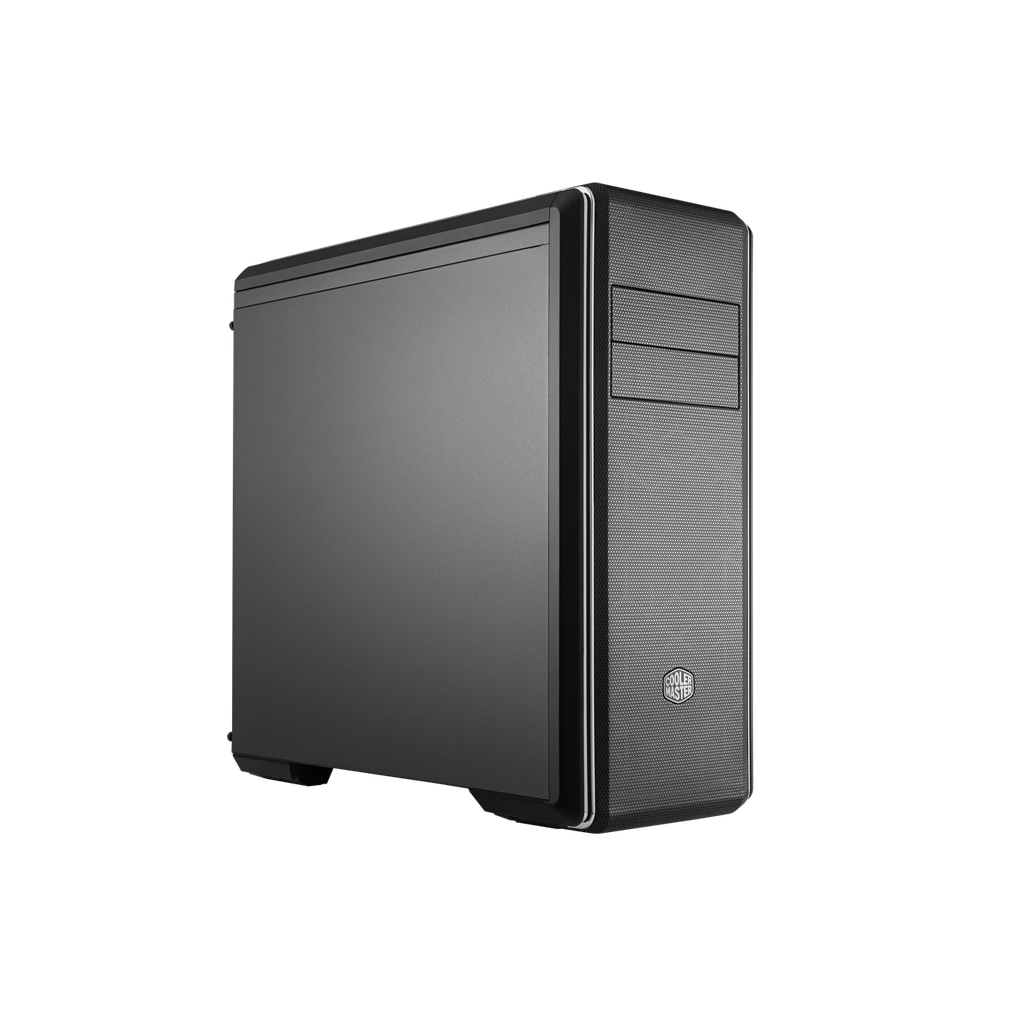

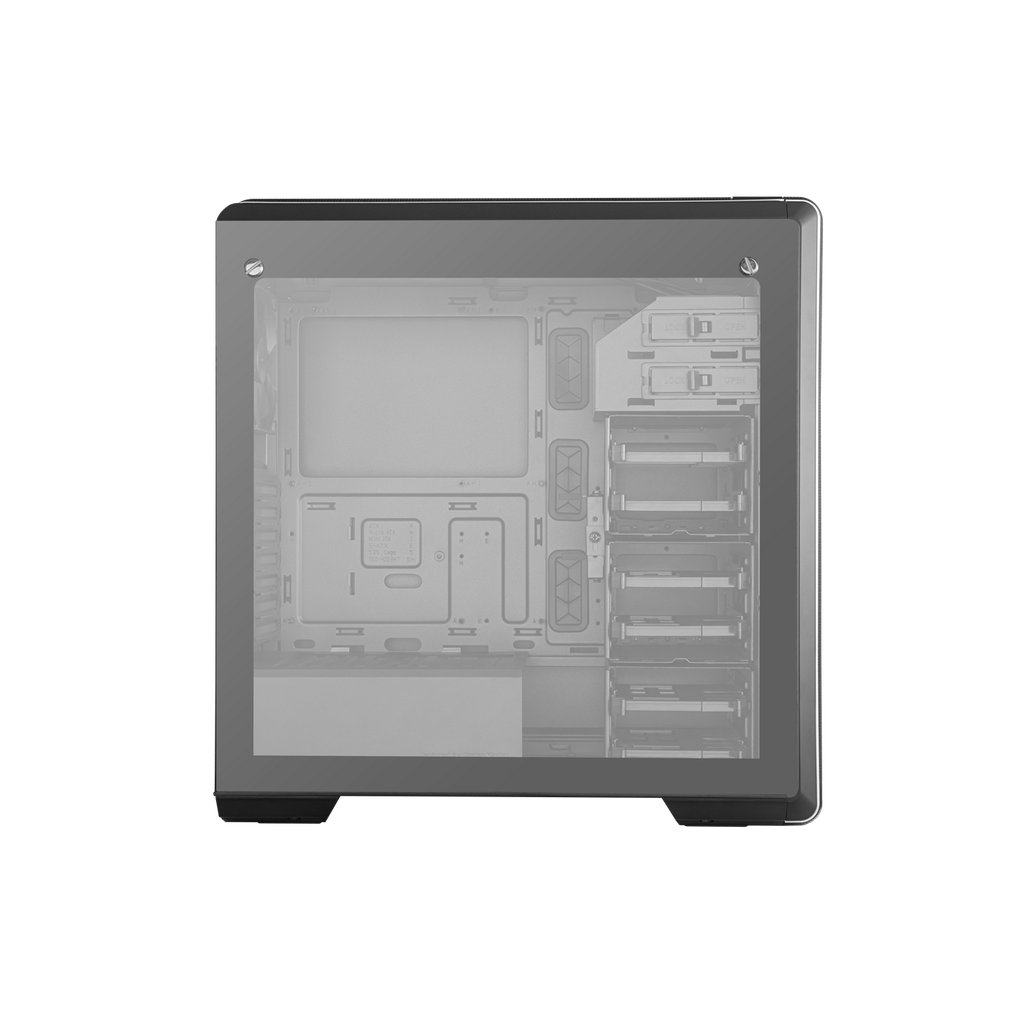

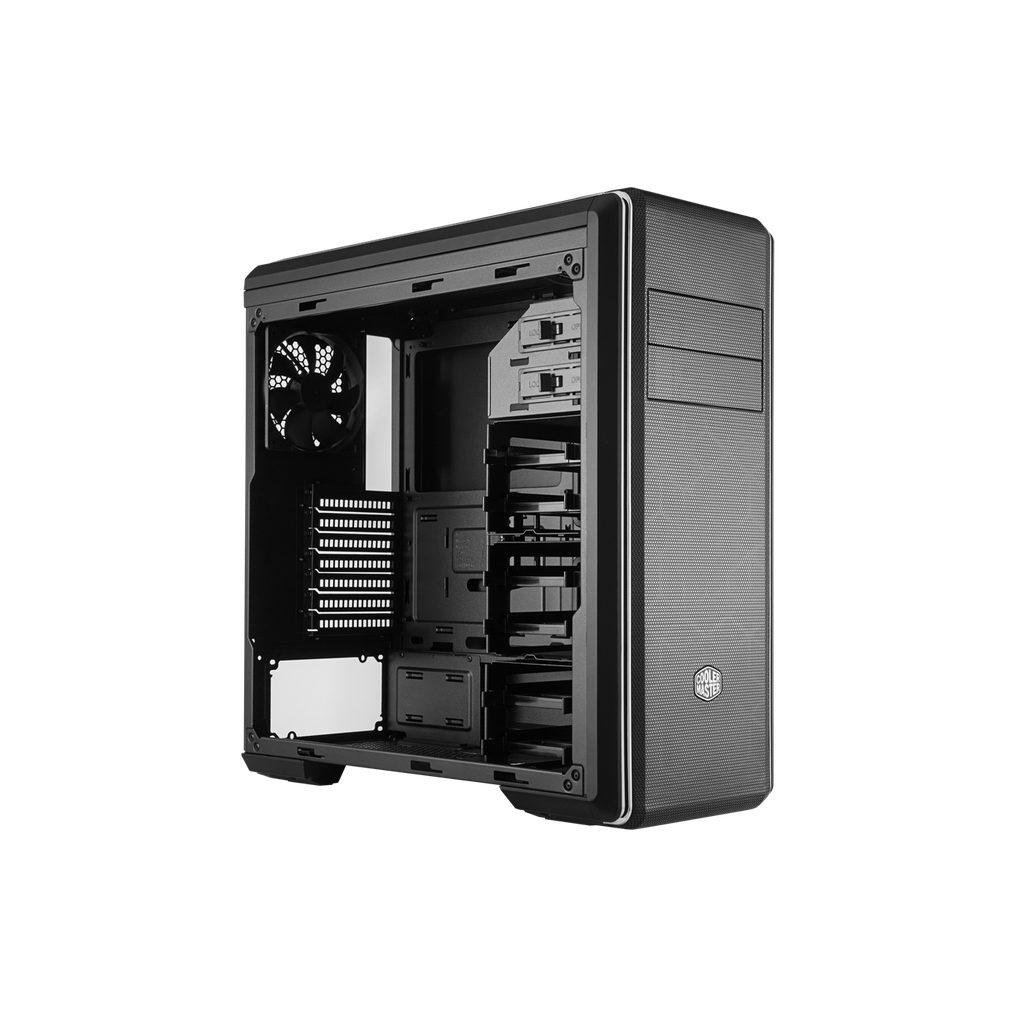

MasterBox CM694 (support for 6 x 3.5”HDDs and 8 x 2.5” SSDs)
- fits E-ATX Motherboards
- Max CPU Cooler Height 171mm
- 6 x 2.5"/3.5" + 8 x 2.5"
- Up to 360 mm Radiator
- support for 6 x3.5” HDDs and 8 x 2.5” SSDs
MasterBox CM694 (support for 6 x 3.5”HDDs and 8 x 2.5” SSDs)
| Brand | COOLERMASTER |
| Model | Masterbox CM694 |
| Mainboard Support | E-ATX / ATX / Micro ATX / Mini ITX |
| Material | Steel, Plastic, Tempered Glass, Mesh |
| Power Supply | No Power |
| Front I/O Port | USB 3.0 Type A x 2 USB 3.1 Type-C x 1 3.5mm Headset Jack (Audio+Mic) x 1 |
| Fan | Front : 120mm x 2 Rear : 120mm x 1 |
| Cooling Support | Fan SupportFront : 120mm x 3 / 140mm x 2 (wo/ODD), 120mm x 2 / 140mm x 2 (w/ODD)Top : 120mm x 3, 140mm x 2Rear : 120mm x 1Radiator SupportFront : 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage)Top : 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility)Rear : 120mm |
| Expansion Slot | 7 Slots |
| Drive Bay | 5.25" ODD x 2 3.5" HDD or 2.5" SSD (Combo) x 6 2.5" SSD x 8 (2 + 6 Combo) |
| Maximum CPU Cooler Height | Up to 171mm |
| Maximum VGA Length | Up to 410mm (max), 350mm (with stabilizer), 280mm (with stabilizer + drive cage) |
