M/B MSI MEG Z590 ACE

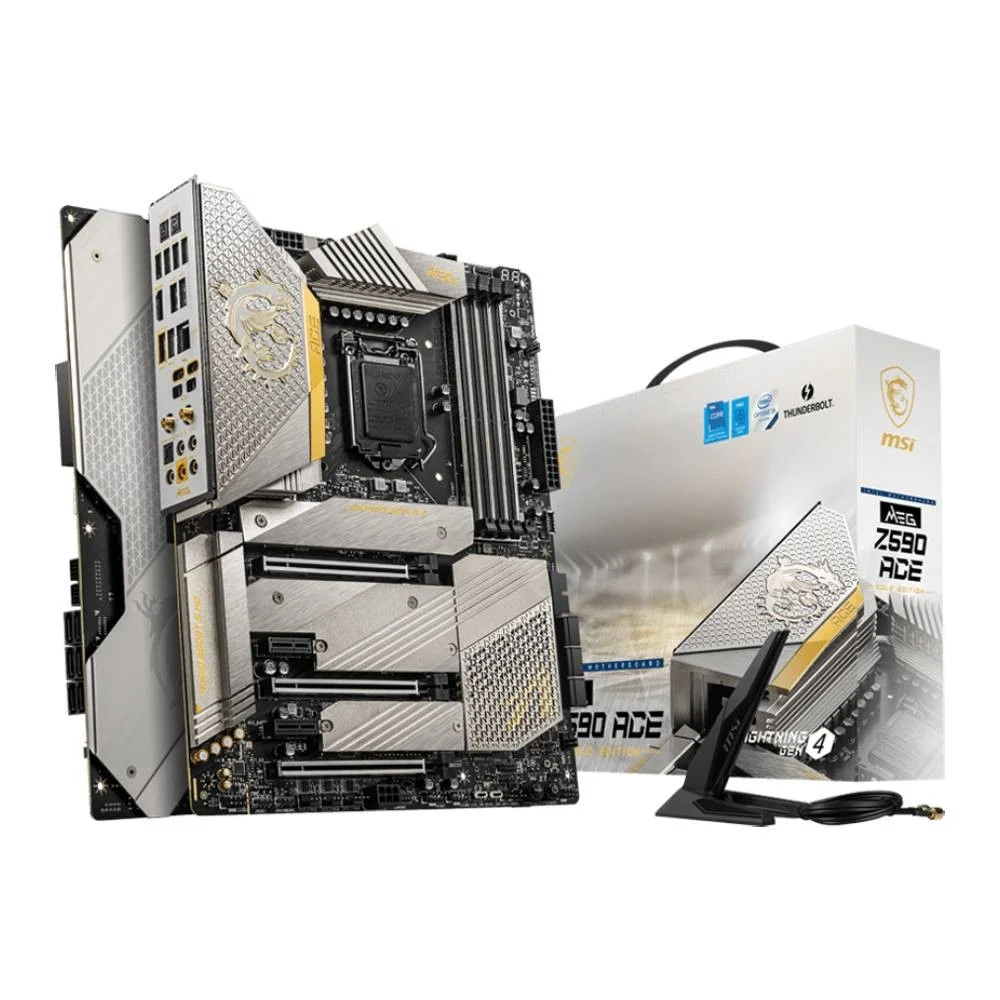

MSI MEG Z590 ACE GOLD EDITION เมนบอร์ดที่เสริมสุนทรียภาพระดับพรีเมียมพร้อมการเคลือบสีแพลตตินั่มและฮีทซิงค์ฟอยล์ทองคำแท้ 24K อวดความงามหรูหราได้อย่างสมบูรณ์แบบ • port Thunderbolt 4 คู่: Thunderbolt USB-C ที่ความเร็ว 40 Gb/s จริง, รองรับการแสดงผล 8K, Daisy-Chaining และสถาปัตยกรรมอุปกรณ์เสริมหลายพอร์ตให้การเชื่อมต่อที่หลากหลายและประสบการณ์การใช้งานที่ดียิ่งขึ้น • LIGHTNING GEN 4 M.2 ใช้โปรเซสเซอร์ Intel เจนเนอเรชั่นที่ 11 มาเธอร์บอร์ด MSI Z590 นำเสนอ Lightning Gen 4 M.2 ล่าสุด ซึ่งเป็นโซลูชั่นการจัดเก็บข้อมูลออนบอร์ดที่เร็วที่สุดในตลาดด้วยความเร็วการถ่ายโอนสูงสุด 64 Gb/s พร้อม Shield Frozr ช่วยให้ M.2 SSD ปลอดภัย และป้องกันการเสียหายและ ทำให้ทำงานเร็วขึ้น
M/B MSI MEG Z590 ACE
Specification
CPU Socket Type | Intel LGA-1200 |
CPU Type | 11th Gen Intel Core Processors |
Supported CPU Technologies | Rocket Lake |
Chipset | Intel Z590 |
Number of Memory Slots | 4x DIMM |
Memory Standard | DDR4 up to 5600(OC) MHz |
Maximum Memory Supported | 128 GB |
Expansion Slot | 3x PCIe x16, 2x PCIe 3.0 x1 |
Storage Devices | 4x M.2 slot, 6x SATA III port |
Onboard Video Chipset | Integrated Graphic on Processor |
Onboard Audio Chipset | Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA |
Audio Channels | 7.1 Channel HD Audio |
Onboard LAN Chipset | Intel I225-V 2.5G LAN, Intel Wi-Fi 6E AX210, Bluetooth 5.2 |
Onboard LAN Speed | 2.5 Gbps |

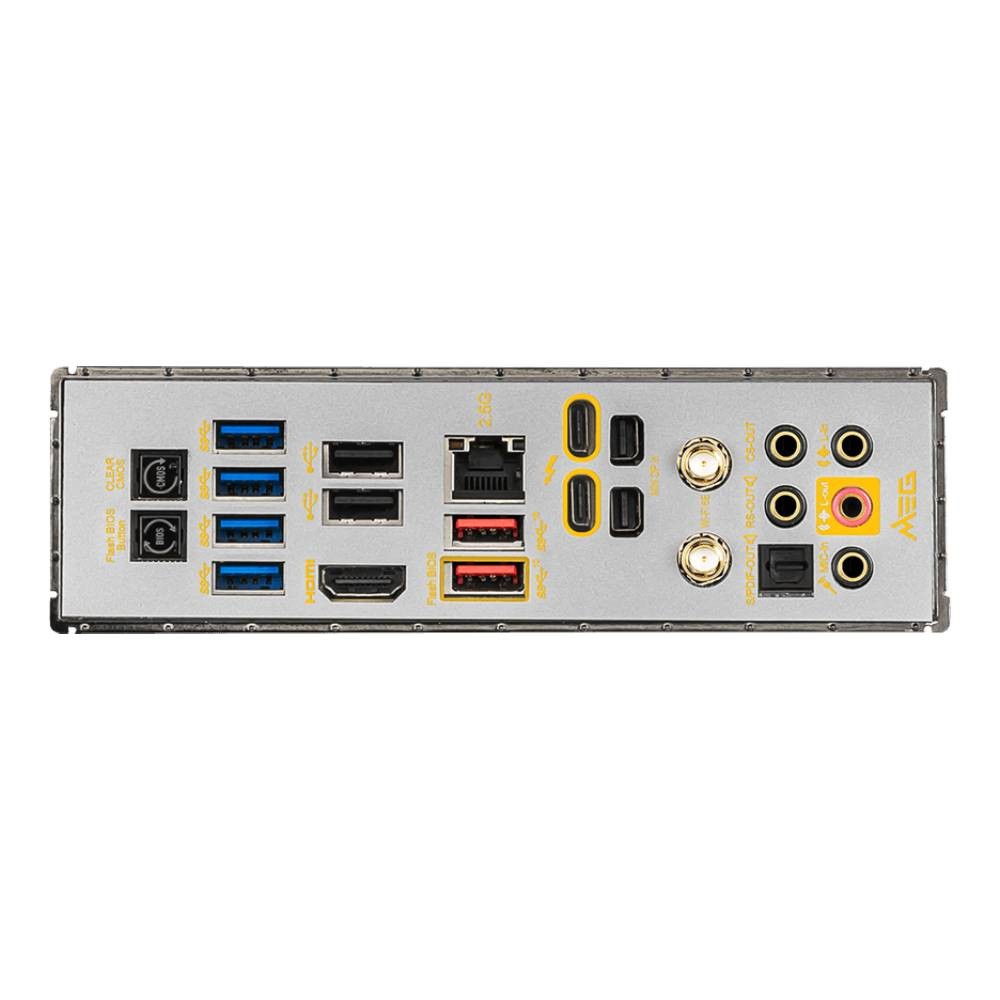

Real Panel Ports | 1x HDMI, 2x mini DP, USB-C, 2.5Gb LAN, Antenna Connector, HD Audio Connector, Clear CMOS |
Onboard USB | 1x USB-C 3.2 Gen2 connector, 1x USB 3.2 connector, 2x USB 2.0 connector |
Dimensions W x D x H | 30.5 x 24.4 cm |
Case spec | ATX Form Factor |
Power Pin | 1x 24-pin main connector, 2x 8-pin power connector |
Warranty | 3 Year |
